SpecTalk Dye Sub LF - Epson 9479H

Printing Technology:
Dual advanced PrecisionCore® TFP® 8-channel, drop-on-demand, inkjet printhead with ink-repelling coating technology

Minimum Ink Droplet Size:
Variable Droplet Technology

Maximum Print Resolution:
1440 x 720 dpi

Print Speed:
Speed: up to 1,169 sq ft/hr1
Sports apparel: up to 568 sq ft/hr1
Fashion/signage: up to 1,004 sq ft/hr1

INK

Tipo di inchiostro:
UltraChrome DS with High-Density Black ink; 4-colour

Ink Configuration:
C, M, Y, HDK

Replacement Ink:
UltraChrome DS Ink
High Density Black Ink Packs (T46C820)
Cyan Ink Packs (T46C220)
Magenta Ink Packs (T46C320)
Yellow Ink Packs (T46C420)

GENERAL

Operating Systems:
Windows® 10 and 8.1

System Requirements:
Minimum PC Requirements: 2GHz CPU, 2GB RAM, 120GB HDD, DVD-ROM or Internet connection
Recommended PC Specifications: 3GHz or higher quad core CPU, 8GB RAM, 500GB SSD, and high-speed Internet connection

Temperature:
Operating (recommended): 59 ˚ to 77 ˚F (15 ˚ to 25 ˚C)
Operating: 59 ˚ to 95 ˚F (15 ˚ to 35 ˚C)

Humidity:
Operating (recommended): 40 – 60% (no condensation)
Operating: 20 – 80% (no condensation)

Sound Level:
Less than 59 dB(A) according to ISO 7779

Dimensions:
103″ x 37″ x 53″ (2,620 mm x 934 mm x 1,332 mm) (W x D x H)

Peso:
639 lb (290 kg)

Paese di origine:
Cina

Garanzia:
Standard 1-year limited warranty. Optional Epson Service programs available for a total of 3 years of coverage.

INK SUPPLY SYSTEM

Ink Supply Fill Volume:
3,000 mL each color x 4 colours total2

In-box Ink Fill Volume:
2,000 mL each color x 4 colors total2

Ink Shelf Life:
2 years from printed production date Printer is designed for use with Epson ink packs only, not third-party ink systems*.

PRINTABLE AREA AND ACCURACY

Maximum Paper Width:
64″

Minimum Paper Width:
11.8″

Maximum Printable Width:
Up to 63.6″

SHEET MEDIA HANDLING

Left/Right Margins:
0.20″ (0.40″ total)

ROLL MEDIA HANDLING

Single Roll-to-Roll / Top-loading Roll:
64″ wide

Media Core:
2″ or 3″ core diameter

Maximum Roll Diameter:
Up to 9.8″

Maximum Roll Weight:
Up to 100 lb

Media Thickness:
From 45 gsm to 1 mm thick

Take-up Reel:
Fully automatic “wind in” or “wind out” with tension control

PRINTER DETAILS

Printer Language:
Epson ESC/P® raster

Interfaces:
1000Base-T Ethernet (1 port)
Hi-Speed USB 2.0 (1 port)

POWER

Rated Voltage:
AC 100 – 120 V; 200 – 240 V

Rated Frequency:
50 / 60Hz

Consumo di energia:
Printing: approx. 570 W or less
Power Off: approx 1.0 W
Sleep Mode: approx 17 W
Standby Heaters On: 340 W

Power Requirements:
Requires two outlets

Rated Current:
10.0 A at 100 – 120 V, 5.0 A at 200 – 240 V

For added specification info please reference www.epson.com.

• Ultra-fast speeds up to 1,169 square feet/hour
• UltraChrome DS6 Ink with fluorescent Yellow and Pink
• High-accuracy roll-to-roll support
• Turnkey solution, fully supported by Epson
• Auto paper-tension control and fabric head wiper

Turn Demand into Profit with Production-Level Print Speeds

Epson SureColor F-series printers can help transform the demand for custom-printed products into bigger profits for your business. Fulfill even the most demanding orders in a flash with print speeds up to 1169 sq. ft. per hour. And you can easily scale your production by adding one or more printers to your workflow without having to worry about the clutter and inefficiency of smaller printers.

Epson UltraChrome DS ink was designed to enable production of a wide range of goods from material and clothing, to soft signage and banners, to hard signage, to sublimated photo images and custom merchandise.

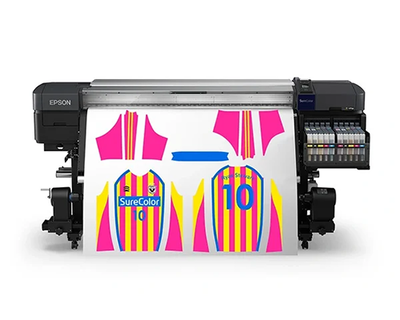

• SureColor F9470H Dye-sublimation Inkjet Printer
• UltraChrome DS Ink – 2,000 mL each color x 4 colors, and 1,000mL of fluorescent Yellow and fluorescent Pink
• Epson Edge Print Software
• Power Cords
• Product Warranty

Options for this printer include consumables and spare parts.

Fare clic qui sotto:

• Epson SureColor 9470H Spec Sheet
